JW-KOFO 30kw 38kva Silent Diesel Generator Auto Remote Start System With ATS

JW-KOFO 30kw 38kva Silent Diesel Generator Auto Remote Start System With ATS

Наименование марки:	JIWEI
Номер модели:	JW-38
МОК:	1
Цена:	Negotiabce
Время доставки:	дни 30work
Условия оплаты:	T/T

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

Номинальное напряжение:

230 В, 380 В, 400 В, 440 В

номинальный ток:

Скорость:

1500 оборотов в минуту, 1800 оборотов в минуту

Частота:

50/60 Гц

Система запуска:

Электрический запуск 12 В постоянного тока

Тип контейнера, открытая рама, мобильный тип

Тип системы охлаждения:

Система охлаждения водой

Гарантия:

Прочие

Номинальная мощность:

14 кВт 16 кВт 24 кВт 30 кВт

Двигатель:

Название продукта:

JW-KOFO 30 кВт 38 кВА Бесшумный дизельный генератор с системой автоматического дистанционного запуск

генератор:

Стэнфорд, Марафон, Лерой Сомер, генератор Груи и т.д.

Упаковывая детали:

Деревянная коробка или упаковка с пластиковым уплотнением

Выделить:

Auto Remote Start System Diesel Generator

ATS 38kva Silent Diesel Generator

Характер продукции

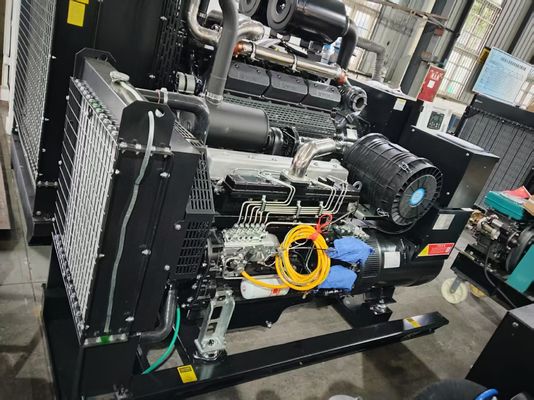

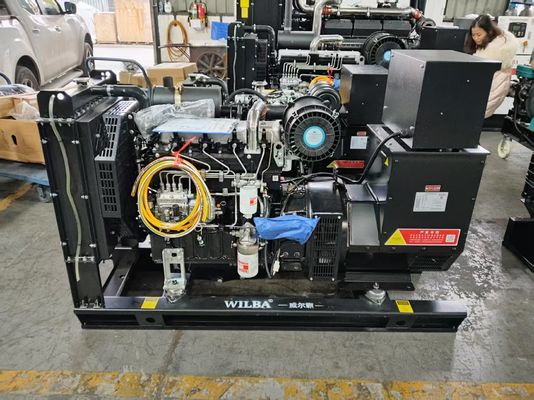

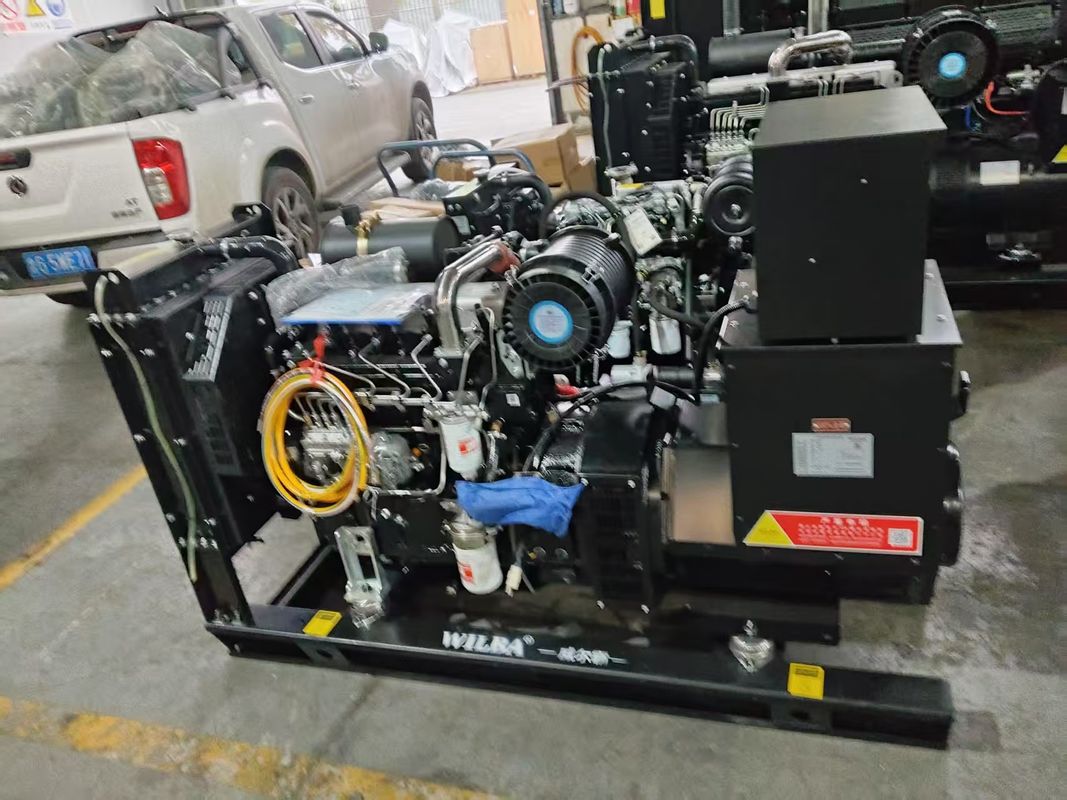

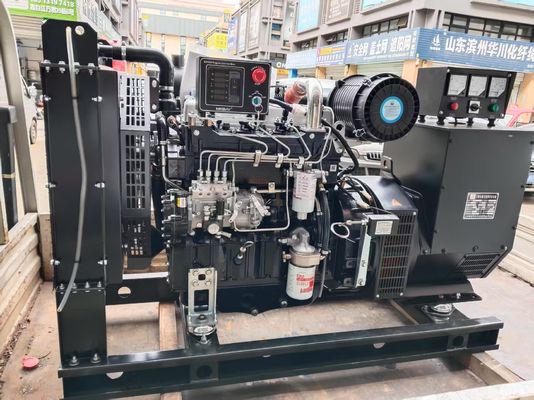

JW-KOFO 30kw 38kva Silent Diesel Generator Auto Remote Start System With ATS

overview

Product Advantages

Superior Performance
- Features an all-copper brushless generator for excellent conductivity and low loss.
- Low fuel consumption and high thermal efficiency ensure long-lasting power and reduced operating costs.
Wide Range of Applications
- Suitable as a backup or emergency power source for various settings, including mines, railways, construction sites, and more.
- Meets diverse power needs for factories, hospitals, hotels, schools, and other users.
Ease of Use and Maintenance
- Elegant design with rainproof and anti-corrosion features; can be used outdoors without a dedicated machine room.
- Convenient access for fuel and battery addition, with an emergency stop button for simple operation.
Reliable Product Quality
- Constructed with high-quality components from reputable sources, backed by a two-year national warranty for after-sales support.
Comprehensive Service System
- Experienced team providing expert support and prompt service.
- Standardized service processes with stable pricing and lifetime cost maintenance for wear parts and damages.

Parameter list

Diesel generator set model	JW-20	JW-30	JW-36
Generator set standby power (KVA)	25	34	41
Generator set standby power (KW)	20	28	33
Rated power of generator set (KVA)	23	31	38
Rated power of generator set (KW)	18	25	30
Rated current (A)	32	45	54
Unit reference weight (KG)	576	576	576
Unit reference dimensions (mm)	1400 * 602 * 1000	1400 * 602 * 1000	1400 * 602 * 1000
Engine model	4YT23-20D	4YT23-30D	4YT23-36D
Intake method	Natural inhalation	Pressurization	Pressurization
Burning method	Direct spray	Direct spray	Direct spray
Cylinder count	4	4	4
Bore × stroke (mm)	88 x 95	88 x 95	88 x 95
Displacement (L)	2.31	2.31	2.31
Compression ratio	18:1	18:1	18:1
Main power (kW)	20	30	36
Rotational speed (r/min)	1500/1800	1500/1800	1500/1800
Maximum idle speed (r/min)	1575 or less	1575 or less	1575 or less
Minimum no-load stable speed (r/min)	650 or less	650 or less	650 or less
Fuel consumption rate (g/kW.h)	247 or less	247 or less	247 or less
Crankshaft rotation direction (facing the flywheel)	Counterclockwise	Counterclockwise	Counterclockwise
Cooling methods	Forced water cooling	Forced water cooling	Forced water cooling
Lubrication method	Pressure splash compound	Pressure splash compound	Pressure splash compound
Start method	Electric start	Electric start	Electric start
Net mass (kg)	210	230	230
Cylinder working sequence	The 1-3-4-2	The 1-3-4-2	The 1-3-4-2
Exhaust temperature ℃	600 or less	600 or less	600 or less
Intake pipe diameter mm	54	60	60
Total oil capacity L	10	10	10
Maximum oil temperature ℃	100	100	100
Oil consumption g/kW.h	2.72 or less	2.72 or less	2.72 or less
Total cooling water capacity L	12	12	12
Dimensions (including water tank, air filter bracket, excluding air filter and muffler) mm	990 * 602 * 775	990 * 602 * 775	990 * 602 * 775
Generator technical data:	Generator technical data:	Generator technical data:	Generator technical data:
Generator brand	JIWEI	JIWEI	JIWEI
Generator model	JW-FDJ18	JW-FDJ25	JW-FDJ30
Generator rated power (KVA)	23	31	38
Generator rated power (KW)	18	25	30
Excitation mode	Brushless excitation	Brushless excitation	Brushless excitation
Frequency (HZ)	50/60	50/60	50/60
Power factor	0.8 Lag	0.8 Lag	0.8 Lag
Voltage (V)	380/415	380/415	380/415
Control system	SmartGen	SmartGen	SmartGen

We have cooperation with worldwide famous brands. For more specification,please contact us.

Our Advantages

Our OEM Partners

are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.

FAQ

1.Q: What is your MOQ of this item?
A:1 Sets.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.

Why choose Jiwei to buy a generator set:

First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, ‌ flexible control, ‌ reduce NOx emission, ‌ high precision control, low vibration, low noise, low maintenance cost; ‌

Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;

Third, strict quality inspection and testing procedures: 1,.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification. Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty;

Fifth,Customized Services: can be more customized products and LOGO according to your needs;

Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
